MP10 – MP16 – MP20 – MP25

MP10 - MP16 - MP20 - MP25

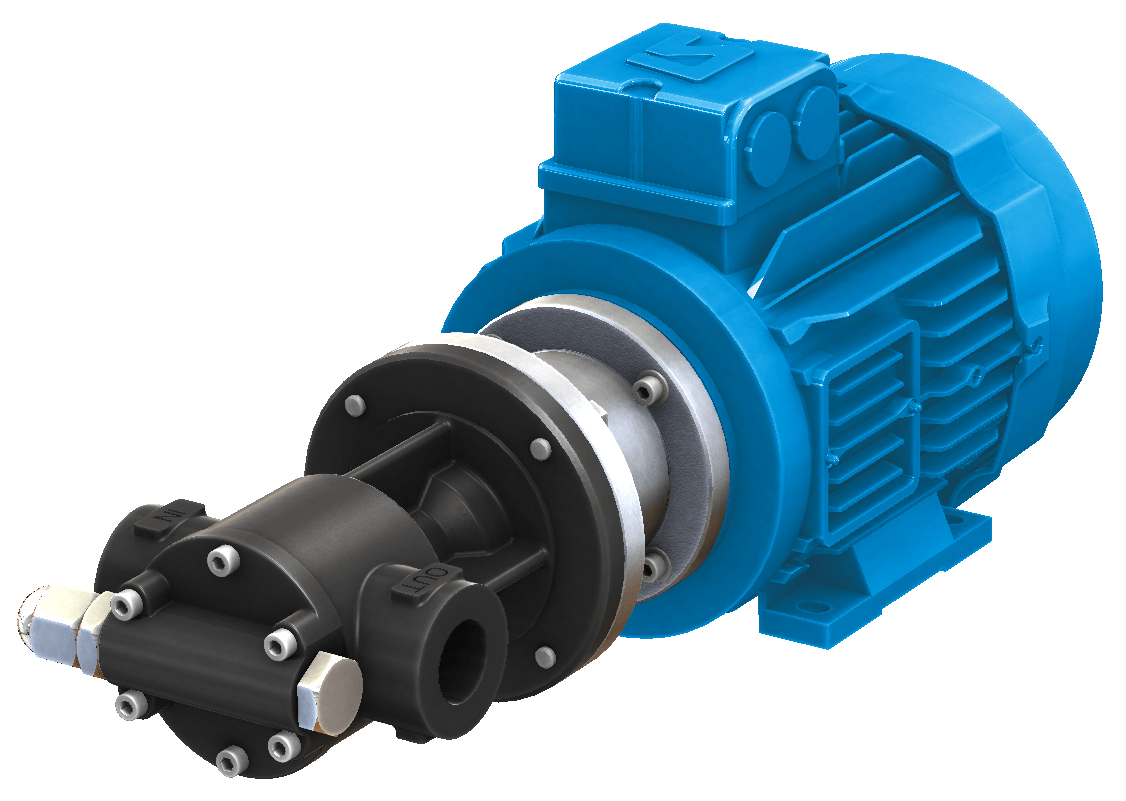

Pompe Pollard MP25

  • The motor-pumps of the range MP10 to MP25 are suitable for pumping fluids having a lubricating propriety (oil, diesel oil, etc.).
  • Their flow rates range is from 7 to 37 L / min, for a working pressure up to 10 bar.
  • The Pollard “CMtec” technology guarantees good volumetric efficiency, good suction capacity and the ability to pump viscous fluids.
  • These robust industrial pumps are designed to provide continuous service for many years.
  • For any request, not included in the catalog, a feasibility analysis can be carried out by our design office on simple demand.

Technical data

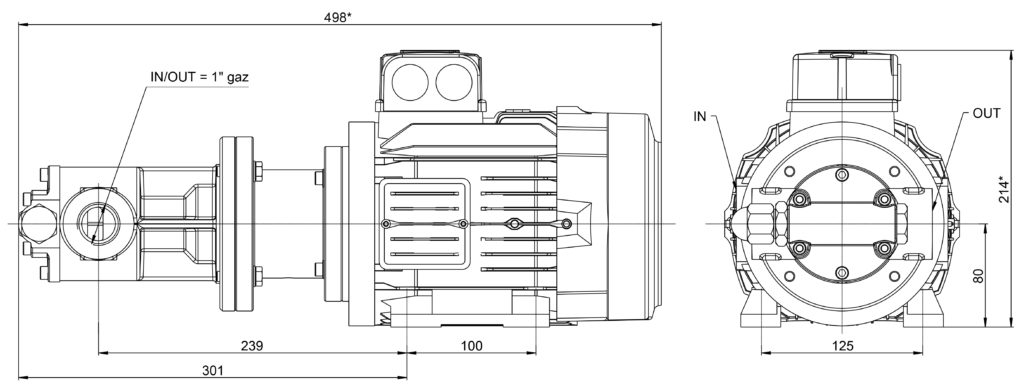

Technical drawing
Flow at 1500 rpm
Viscosity/speed
3D File
Data Sheet
Flow range (L/min) ≤ 37
Speed rotation range (rpm) ≤ 1500*
Fluid viscosity range (cSt) 1 – 10000*
Suction capacity (bar) -0,5
Max. operating pressure (bar) 10
Integrated by-pass yes
By-pass standard setting (bar) 5
Standard operating temperature (°C) -20 / +150
Body and stator material Cast iron
Shaft and vanes material Hardened steel
Max. size of hard particles (microns) 200
Acoustic pressure (dB) 65
Seal type Mechanical seal
Weight Depending on the motorization

Also available with reverse system.

In this range of capacities the standard Pollard motorpumps are equipped with 0,75kW, 4 poles (1500 rpm), B34, flange FT100 motors.

Ref.
MP10 15 L/min
 MP16 24  L/min
MP20 30  L/min
MP25 37  L/min
Viscosity (cSt) Speed max. (rpm)
Visc. < 1000 1500
1000 < Visc. < 3000 1000
3000 < Visc. < 5000 750
5000 < Visc. < 10000 500
Visc. > 10000 200
