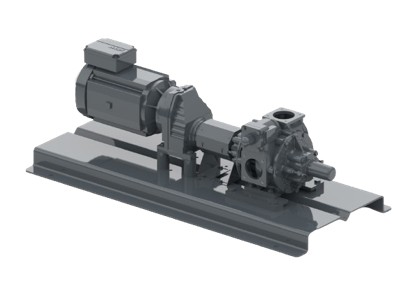

MTP15-30

MTP15-30

Pollard TP series sliding vane pumps are designed for transfer, loading & unloading applications of petroleum products.

Flow up to 60 m3/h
Differential pressure up to 8 bar

APPLICATIONS :

  • Unloading of tankers, carriers, refuellers
  • Transfer of hydrocarbons, biofuels, diesels, gasolines, kerozene, solvents, lubricant products

MAIN FEATURES :

  • Constant flow, self-priming, hose drain
  • Lower weight, higher flowrate
  • Self-lubricating with internal by pass
  • Robust construction allowing to work in severe conditions
  • Designed following European Standard NF EN 809+A1
  • ATEX certification

Performance data
Construction
Dimensions
Fichiers

Differential pressure 4 bar
Product viscosity 5 cst

Model TP15 TP20 TP25 TP30
Pump rotation speed, rpm 780 600 400 780 600 400 780 600 400 650 600 400
Flow, L/min 196 150 94 325 254 169 553 426 283 1010 933 620
Flow, m3/h 11,8 9,0 5,6 19,5 15,2 10,1 33,2 25,6 17,0 60,6 56,0 37,2
Mechanical power, Kw 2,1 1,6 1,2 3,1 2,4 1,6 5,2 4 2,6 9,6 9 6
Weight, kg 21,6 27 39 58

NOTE
Maximum differential pressure: 8 bar
Maximum viscosity: 5000 cst (Rotation speed to be adjusted with the viscosity)

Body Cast iron
Vanes Composite
Static seal Viton (FKM)
Mechanical seal Viton
Integrated by pass ✓
Flange Optional
T Filter Optional

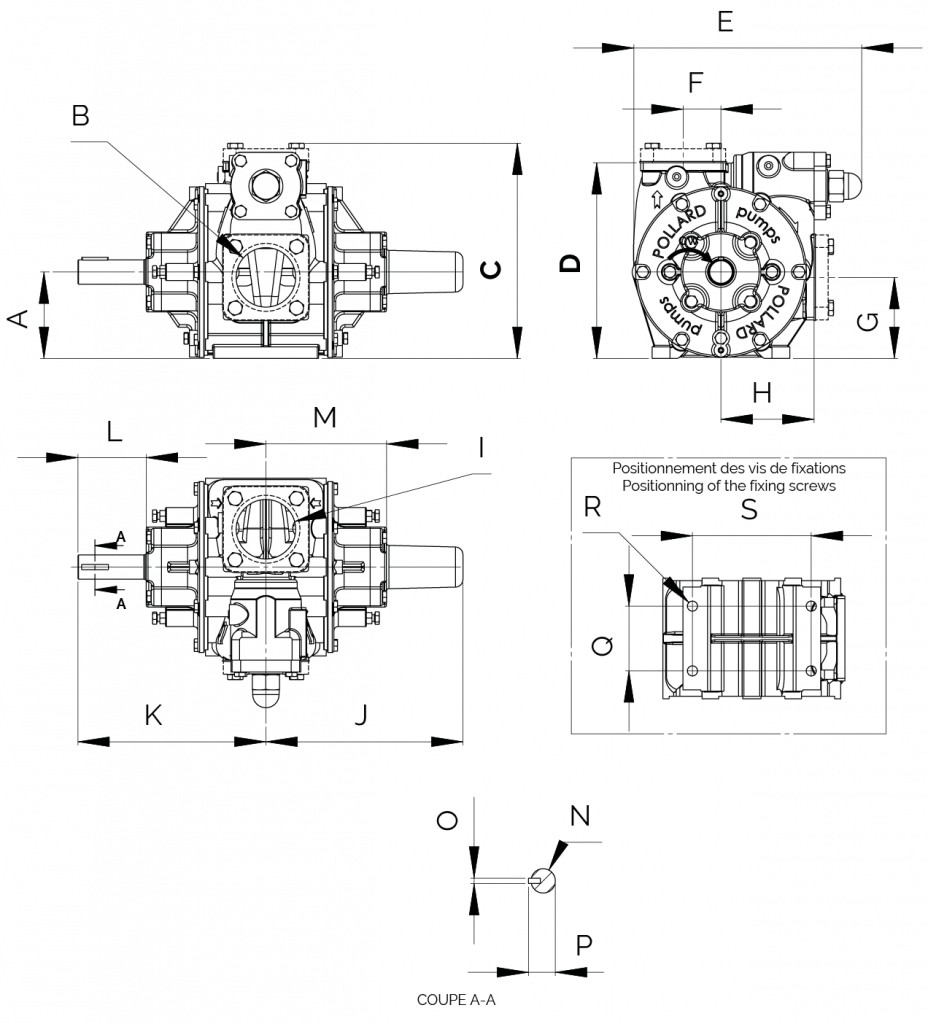

DIMENSIONS, mm
TP15 TP20 TP25 TP30
A 101,6 101,6 101,6 136,6
B 1,5NPT-45 63 70 84
C 206 229 253 308
D 203,2 206,4 230,2 269,9
E 257 254 268 347
F 57,2 38,1 44,5 63,5
G 101,6 88,9 95,3 117,5
H 111,1 101,6 109,5 127
I 1,5NPT-45 63 70 84
J NA 222 231,7 NA
K 198,4 203,3 221 244,5
L 81,8 74 80,3 72,6
M 115,1 NA NA 136
N 28,575 28,575 28,575 28,575
O 6,35 6,35 6,35 6,35
P 31,49 31,49 31,49 31,49
Q 41,3 41,3 76,2 63,5
R 11 11 12 16
S 127 127 139,7 152,4
Single shaft Double shaft Double shaft Single shaft
